FIND YOUR DISPLACEMENT

Select the desired displacement and discover the World of X30 power units by IAME

60cc

M1

1.462,78 Iva Inclusa

RRP (Recommended Retail Price)


The M1 is the latest news in IAME’s production. This small and compact 60cc power unit is designed to introduce the very youngest drivers to Karting and to make life as easy as possible to Dads and Mechanics. The M1 requires a very easy installation as all accessories are fixed on the engine block. The engine needs very low maintenence and basic service skills. It is provided with an easy and effective pull start system and a Tillotson diaphragm carburetor. The exhaust system stands with the engine and doesn’t require the installation on the chassis. The simple 1.5l fuel tank completes the engine package. The M1 can be installed on 860/950mm wheelbase chassis. Safety is guaranteed by the cylinder/cylinder head and exhaust heat covers and a practical ON/OFF switch is located on the right side of the engine providing easy and immediate access to operators. The M1 is the power unit for the Drivers of the future and provides the perfect choice for Karting Trainers, Schools and Rental facilities. M1, the first step into Motorsport.

Download

Technical information

model: M1
description: Single cylinder – 2 stroke
class: Training – Stock Class
bore: Ø 41,80mm
max-bore: Ø 42,00mm
stroke: 43,30mm
displacement: 59,42cc
ports: 2
inlet-system: Piston Port
lubrication: Oil mixture
ignition-system: Analogic
transmission: Centrifugal Dry Clutch
cooling-system: Air
balancer-shaft:
starter: Pull Start
carb-model: Tillotson HS323A
max-power: 2.0 Hp
max-torque: 2.5 Nm
max-rpm-limit:

85cc

100cc

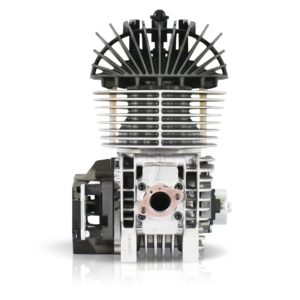

REEDJET KA100

2.311,90 Iva Inclusa

RRP (Recommended Retail Price)


The Reedjet KA 100 engine is specifically designed to meet the needs of the hobby classes. A traditional engine, designed for the professional/hobby driver; reliable, easy to use and service.

Download

Technical information

model: Reedjet KA100
description: Single cylinder – 2 stroke
class: KA 100
bore: Ø 48,20mm
max-bore: Ø 48,53mm
stroke: 54,00mm
displacement: 98,53cc
ports: 2
inlet-system: Reed Valve
lubrication: Oil mixture
ignition-system: Analogic with adjustable timing
transmission: Centrifugal Dry Clutch
cooling-system: Air
balancer-shaft:
starter: Electric
carb-model: Tillston HW 33A
max-power: 22 Hp
max-torque: 15 Nm
max-rpm-limit:

125cc
