FIND YOUR DISPLACEMENT

Select the desired displacement and discover the World of X30 power units by IAME

60cc | 125cc | 175cc

60cc

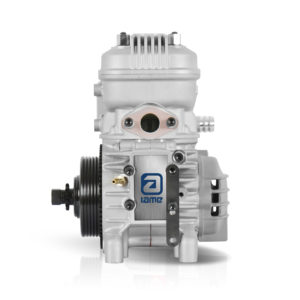

X30 WATER SWIFT

1.706,78 Iva Inclusa

Derived from the Water Swift, the X30 Water Shift 60cc engine adopts a traditional axle-driven water pump. The proven architecture of the IAME Mini Swift engines coupled with water-cooling guarantees stable performance and reliability.

Download

Technical information

model: X30 Water Swift 60cc
description: Single cylinder – 2 stroke
class: 60cc Stock Class
bore: Ø 41,81mm
max-bore: Ø 42,10mm
stroke: 43,00mm
displacement: 59,00cc
ports: 2
inlet-system: Piston Port
lubrication: Oil mixture
ignition-system: Electronic/Analogic
transmission: Centrifugal Dry Clutch
cooling-system: Water
balancer-shaft:
starter: Electric
carb-model: Tillotson HW-31A
max-power: 10 Hp
max-torque: 7 Nm
max-rpm-limit:

125cc

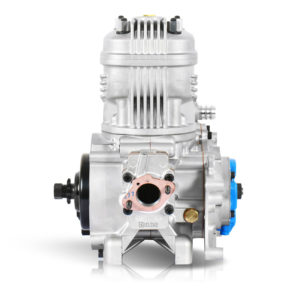

X30 JUNIOR (SPEC. EU/JPN/UK)

2.830,40 Iva Inclusa

The best selling X30 is the most successful blend of innovation and tradition. Offering modern features such as an electric starter, balancer shaft and water-cooling, while preserving traditional specifications that include the diaphragm carburetor and the absence of the power valve. The result: an engine that is fun to drive, easy to use and long lasting. Pure karting!

Download

Discover the product in deep

Technical information

model: X30 125cc – Junior
description: Single cylinder – 2 stroke
class: 125cc Stock Class
bore: Ø 54,00mm
max-bore: Ø 54,28mm
stroke: 54,00mm
displacement: 123,67cc
ports: 3
inlet-system: Reed Valve
lubrication: Oil mixture
ignition-system: Digital
transmission: Centrifugal Dry Clutch
cooling-system: Water
balancer-shaft: Present
starter: Electric
carb-model: Tillotson HW-27A
max-power: 21 Hp
max-torque: 11 Nm
max-rpm-limit: 16.000 RPM

X30 SENIOR (SPEC. EU/JPN/UK/AUS)

2.732,80 Iva Inclusa

The best selling X30 is the most successful blend of innovation and tradition. Offering modern features such as an electric starter, balancer shaft and water-cooling, while preserving traditional specifications that include the diaphragm carburetor and the absence of the power valve. The result: an engine that is fun to drive, easy to use and long lasting. Pure karting!

Download

Discover the product in deep

Technical information

model: X30 125cc
description: Single cylinder – 2 stroke
class: 125cc Stock Class
bore: Ø 54,00mm
max-bore: Ø 54,28mm
stroke: 54,00mm
displacement: 123, 67cc
ports: 3
inlet-system: Reed Valve
lubrication: Oil mixture
ignition-system: Digital
transmission: Centrifugal Dry Clutch
cooling-system: Water
balancer-shaft: Present
starter: Electric
carb-model: Tillotson HW-27A
max-power: 30 Hp
max-torque: 19, 5 Nm
max-rpm-limit: 16.000 RPM

175cc

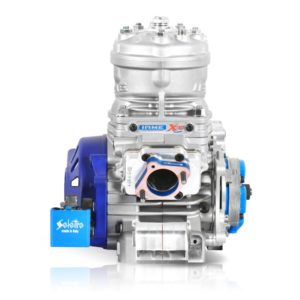

X30 SUPER

3.159,80 Iva Inclusa

The X30 SUPER combines the advanced technology of the award-winning Reedster KF class engine, with the practical solutions and reliability of the X30 platform. Its’ main feature is the new and impressive 175cc format, that allows a maximum torque of 26 Nm and 43 H.P., without requiring the adoption of an exhaust power valve. The X30 Super will satisfy the most demanding and talented drivers around the world!

Download

Technical information

model: X30 Super 175cc
description: Single cylinder – 2 stroke
class: 175cc Stock Class
bore: Ø 63,92mm
max-bore: Ø 64,04mm
stroke: 54,40mm
displacement: 174, 56cc
ports: 5
inlet-system: Reed Valve
lubrication: Oil mixture
ignition-system: Digital
transmission: Centrifugal Dry Clutch
cooling-system: Water
balancer-shaft: Present
starter: Electric
carb-model: Tillotson HB-10A
max-power: 43 Hp
max-torque: 26 Nm
max-rpm-limit: 15.000 RPM

X30 SUPER SHIFTER

5.055,68 Iva Inclusa

The X30 Super Shifter is the natural evolution of the X30 Shifter, providing the ultimate driving experience by showcasing a displacement of 175cc. The ideal solution for all drivers wishing to race a shifter engine at the highest level of competition with the benefits of an electric starter. The X30 Super Shifter combines the performance of the very best KZ engines with the typical features required in single engine classes: equal performance, reliability, consistency and ease of use.

Download

Technical information

model: X30 Super Shifter 175cc
description: Single cylinder – 2 stroke
class: 175cc Gearbox Stock Class
bore: Ø 63,92mm
max-bore: Ø 64,04mm
stroke: 54,40mm
displacement: 174, 56cc
ports: 5
inlet-system: Reed Valve
lubrication: Oil mixture
ignition-system: Digital
transmission: 6 Speed Gearbox
cooling-system: Water
balancer-shaft:
starter: Electric
carb-model:
max-power: 49 Hp
max-torque: 27 Nm
max-rpm-limit: 14.150 RPM
